UV / IR Camera IR CAMERA
Max. Resolution 1.3M Pixels
Frame Rate 131.pfps, 252.6fps
Sensor Type 1.2inch ( IR )
![](/data/plupload/16891391610.jpg)

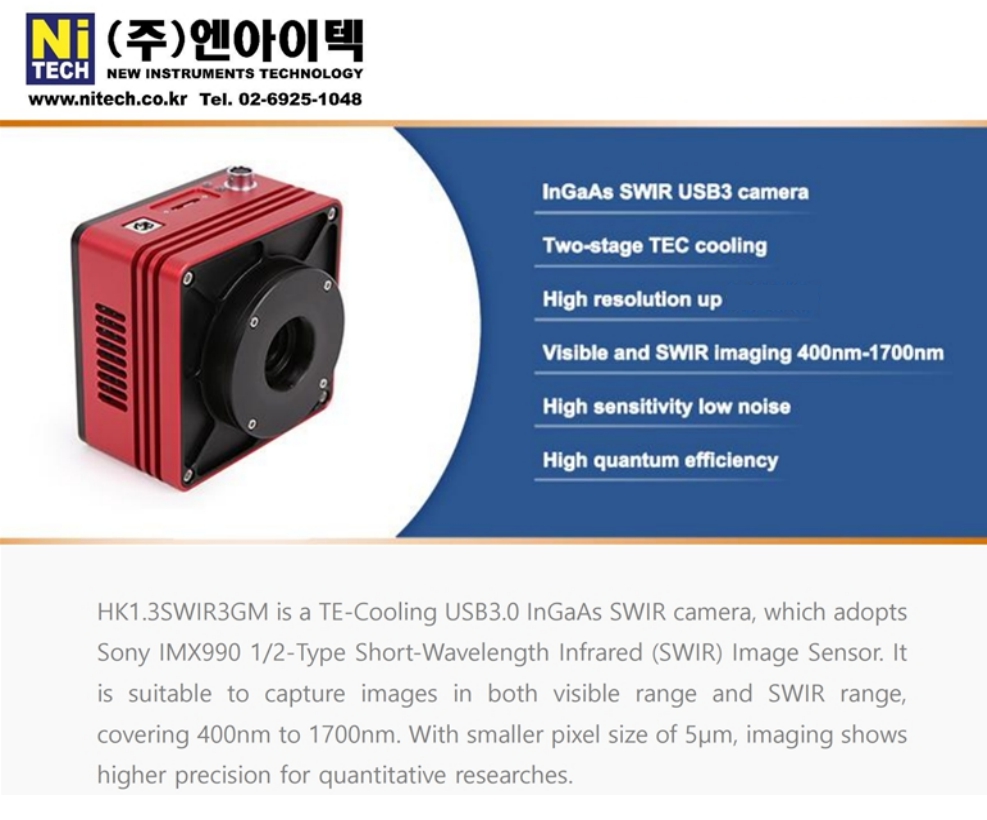

HK1.3SWIR3GM is a TE-Cooling USB3.0 InGaAs SWIR camera,which adopts Sony IMX990 1/2-Type Short-Wavelength Infrared (SWlR)Image Sensor.
It is suitable to capture images in both visible range and SWlR range, covering 400nm to 1700nm. With smaller pixel size of 5um,
imaging shows higher precision for quantitative researches.
With the two-stage peltier cooling sensor chip to 25~30 degree below ambient temperature.
This will greatly increase the signal to noise ratio and decrease the image noise.
Smart structure is designed to assure the heat radiation efficiency and avoid the moisture problem.
Electric fan is used to increase the heat radiation speed.
SWIR comes with advanced video & image processing application HKBasic;
Providing Windows/Linux/macOS/ Android multiple platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc);
SWIR camera can be used in electronic board inspection, solar cellinspection,
semiconduction inspection,transmission observation,produce inspec-tion,
identifying and sorting, water visu-alization, temperature observation, surveil-lance,
anti-counterfeiting Short wave infrared high-end night vision security applications are also the best choice.
